02 · Roof construction
Roof Beams, Carcass & Covering
The roof sequence moves from ring-beam formwork and reinforcement into early timber framing, the main roof carcass and the covered exterior form.
- Focus
- Roof construction
- Stages
- 04
- Progress images
- 20
View from the main roof carcass/truss construction progression.
Construction progression
The work,
stage by stage.
Every usable supplied image appears below in its original numbered progression.
Roof/ring-beam formwork and reinforcement
The roof sequence begins with ring-beam formwork and reinforcement.

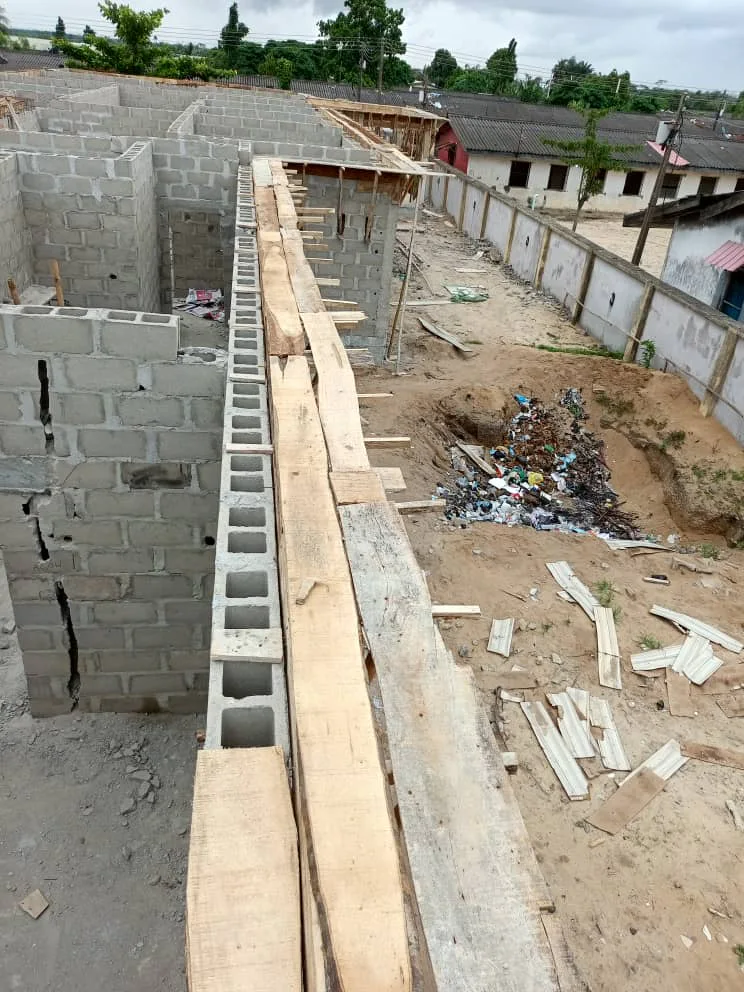

Roof ring-beam formwork and reinforcement. View 01.
Image 1 of 6: Roof ring-beam formwork and reinforcement. View 01.
Early timber roof framing
Early timber members begin to establish the roof profile.

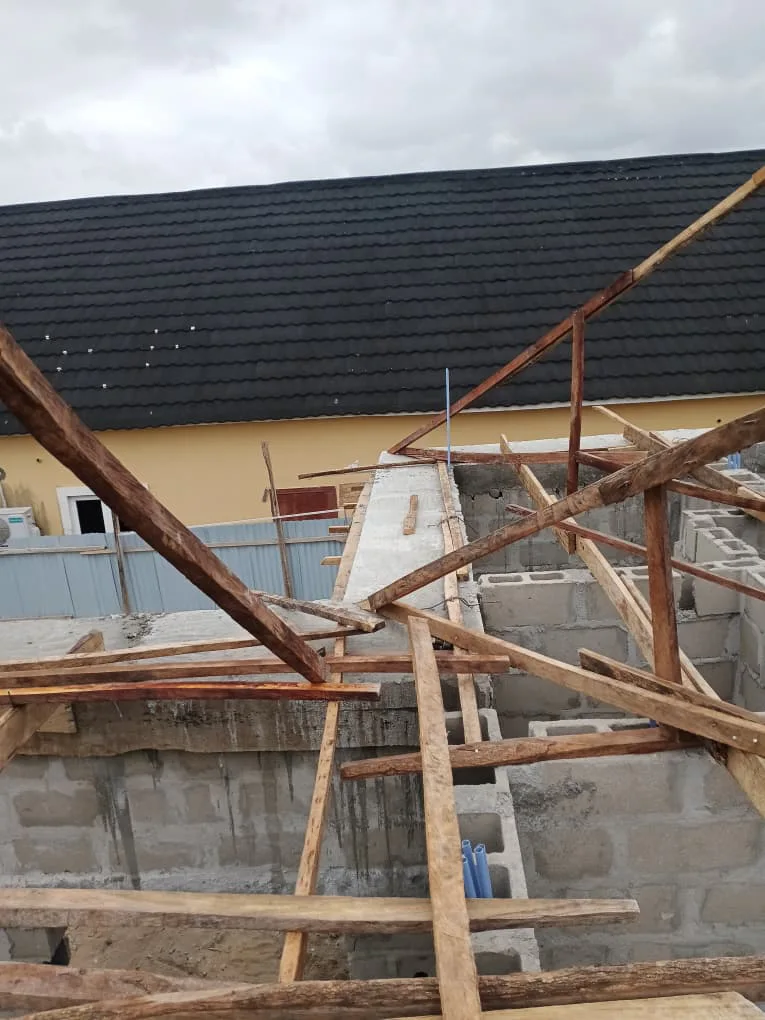

Early timber roof framing in progress. View 01.
Image 1 of 3: Early timber roof framing in progress. View 01.
Main roof carcass/truss construction
The timber carcass develops through successive truss-construction views.

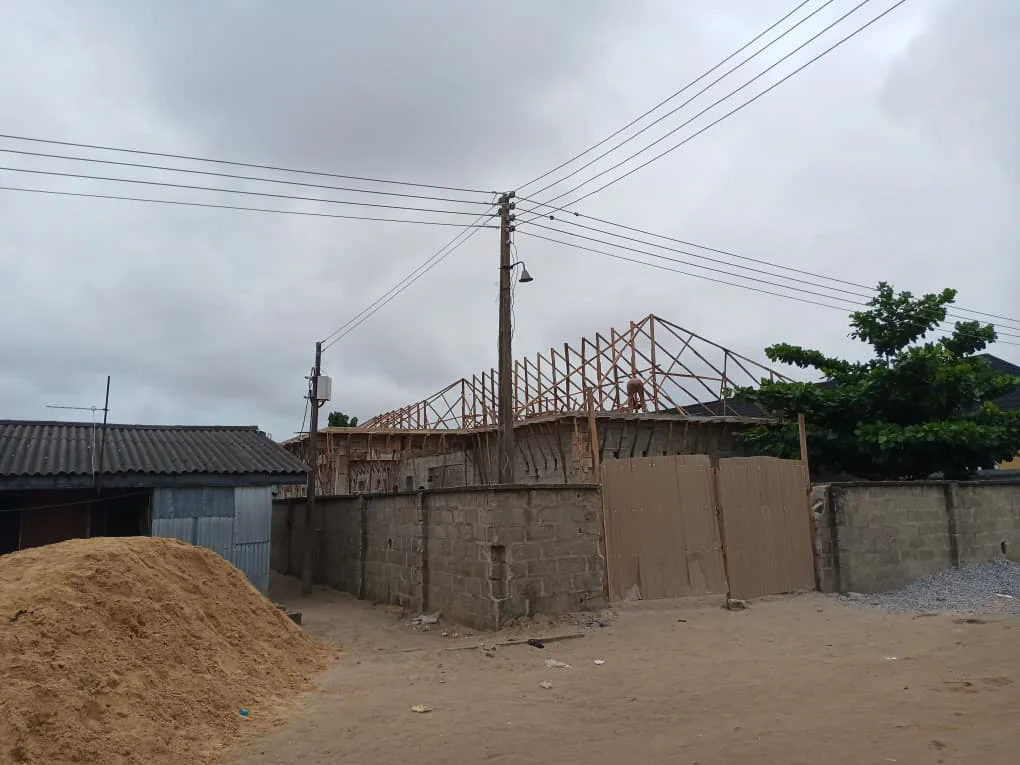

Main roof carcass and truss construction. View 01.
Image 1 of 7: Main roof carcass and truss construction. View 01.
Roof covering and later exterior views
Later exterior views show the building as roof covering is introduced.

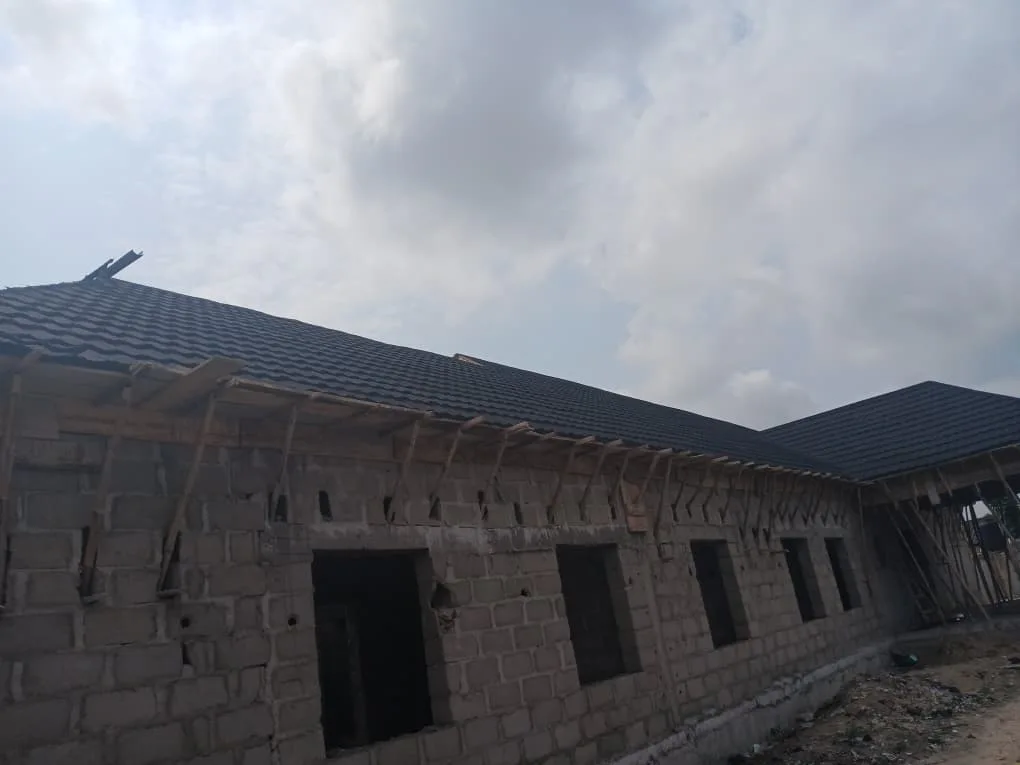

Roof covering and later exterior condition. View 01.
Image 1 of 4: Roof covering and later exterior condition. View 01.
